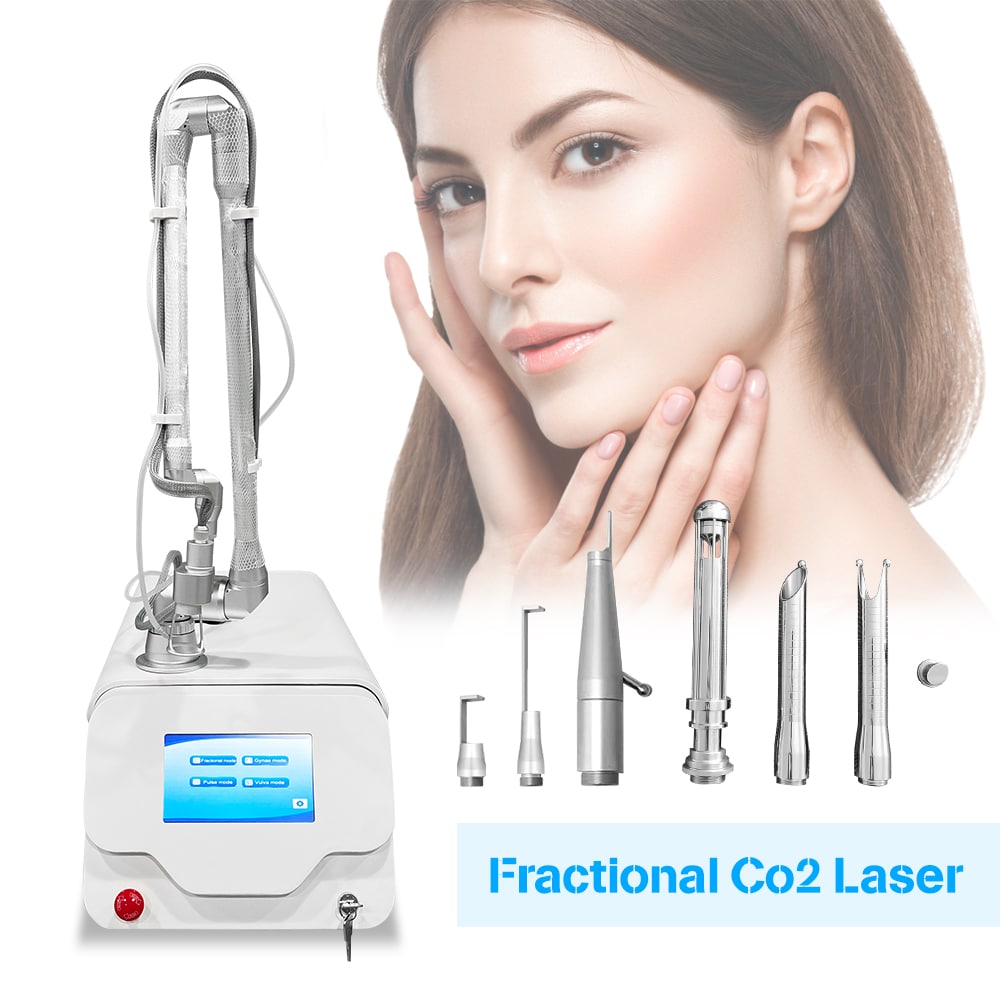

Fractional CO2 Laser Machine for Spot Scar Removal

Principle of Fractional CO2 Laser Machine

Fractional CO2 Laser Machine fires a laser beam which is spliting init numbers of microscopic beams. It produces tiny dot or pixel-like treatment zones within the selected area of the skin, leaving the other zones within it perfectly intact. Therefore, the heat of laser only passes deeply through the fractional damaged area. This allows the skin to heal much faster than if the whole area was treated. During the skin self-resurfacing, a great number of collagen is produced for skin rejuvenation. Eventually the skin will look much healthier and younger.

CO2 fractional laser can induce heat shock response (HSR). It can produce heat shock protein (HSP), heat shock protein 70 can be converted into growth factor β under laser irradiation. TGF-β plays a key role in inflammatory response and fibrosis response, it can induce cells to produce collagen and extracellular matrix.

Advantage of Fractional CO2 Laser Machine

CO2 fractional laser equipment is the most advanced conceptual fractional CO2 skin peeling laser system with a wavelength of 10600nm. In addition to its fine skin peeling effect, it can effectively penetrate the laser beam into the dermis. It is the most beneficial skin recovery system and can achieve the long-term effect of collagen remodeling. As well as improvement of aged skin conditions due to exposure to light.

Fractional CO2 laser machine can be very safely applied to various types of scars compared to the existing 100% total layer skin peeling lasers (CO2 or Er: YAG). In addition, it does not require a long period of recovery or side effects. Co2 fractional laser can remodel various types of deformed scars and skin tissue very effectively.

Smooth technology

1. The ideal laser wavelength can be absorbed by micron-level tissues on the mucosa, avoiding thermal damage to deep tissues or organs.
2. The laser energy is output in the form of short pulses at optimized intermittent intervals. Which can avoid thermal damage caused by high temperature on the skin surface. And a uniform thermal effect is formed on the surface layer with a thickness of several hundred microns in the mucosal tissue.
3. Use the Smooth mode to treat vaginal mucosal tissue in a non-invasive mode that is as gentle as a feather. And there will be no bleeding, because this mode can precisely control the temperature to avoid tissue damage.

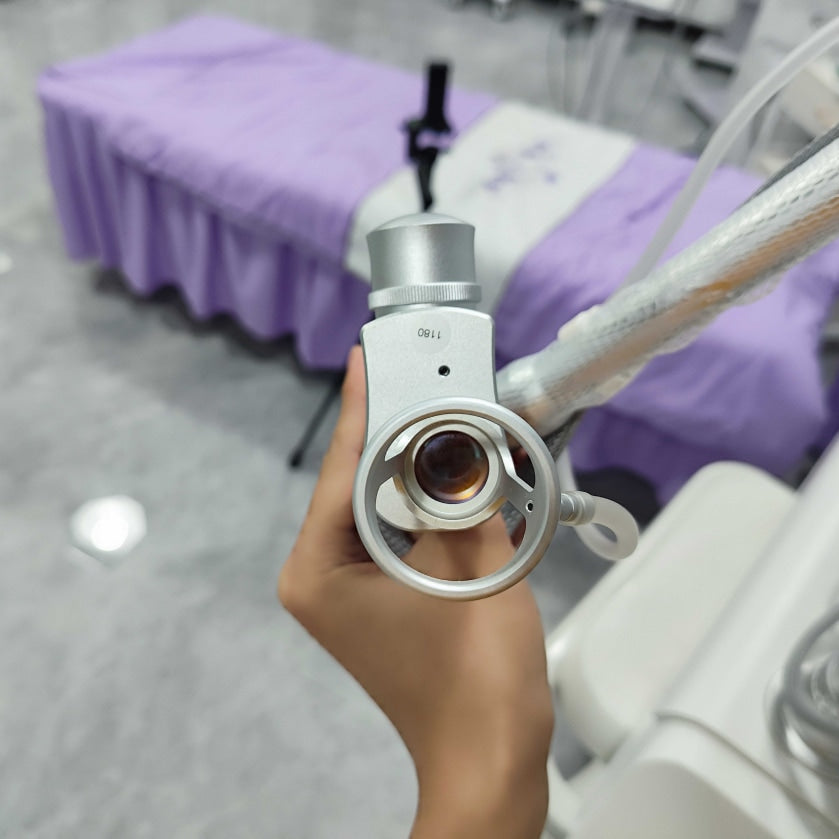

Gold 360 Ring Launch Technology

The laser passes through the gold-plated 360° reflective handpiece and acts on the private wall in a circular light-emitting pattern. The treatment method does not touch the private wall, but applies the laser energy to the entire private evenly and comprehensively. This technology makes the operation of private laser tightening easier. The treatment time is shorter, and the safety is higher.

Function of Fractional CO2 Laser Machine

• Use laser to scan and treat target tissue,heat can be transmitted from the superficial to the dermis of the skin.
• Traumatic holes between the normal tissue to produce thermal bridging. Start the skin trauma repair mechanism(Inflammatory stage, proliferative phase, remodeling stage).
• Produce a large number of new collagen to the leather frame structure reconstruction, facial contour sculpture, wrinkles disappear, delicate skin texture, acne smoothing.
• Fractional co2 laser machine acts on private mucosa, muscular layer. It stimulates fibroblast newborn in mucosal lamina propria, muscular layer, remoulds damaged collagen fiber, elastic fiber etc.

Applications of Fractional CO2 Laser Machine

dot matrix and pulse

• Various scars (surgical scars, burn scars, scald scars)
• Remove pigmented lesions (freckles, sun spots, age spots, sun spots, melasma, etc.)
• Eliminate stretch marks
• Comprehensive skin rejuvenation, skin tightening, shrink pores, nodular acne
• Vascular disease (capillary hyperplasia, rosacea)
• Remove false and real wrinkles
• Get rid of acne scars

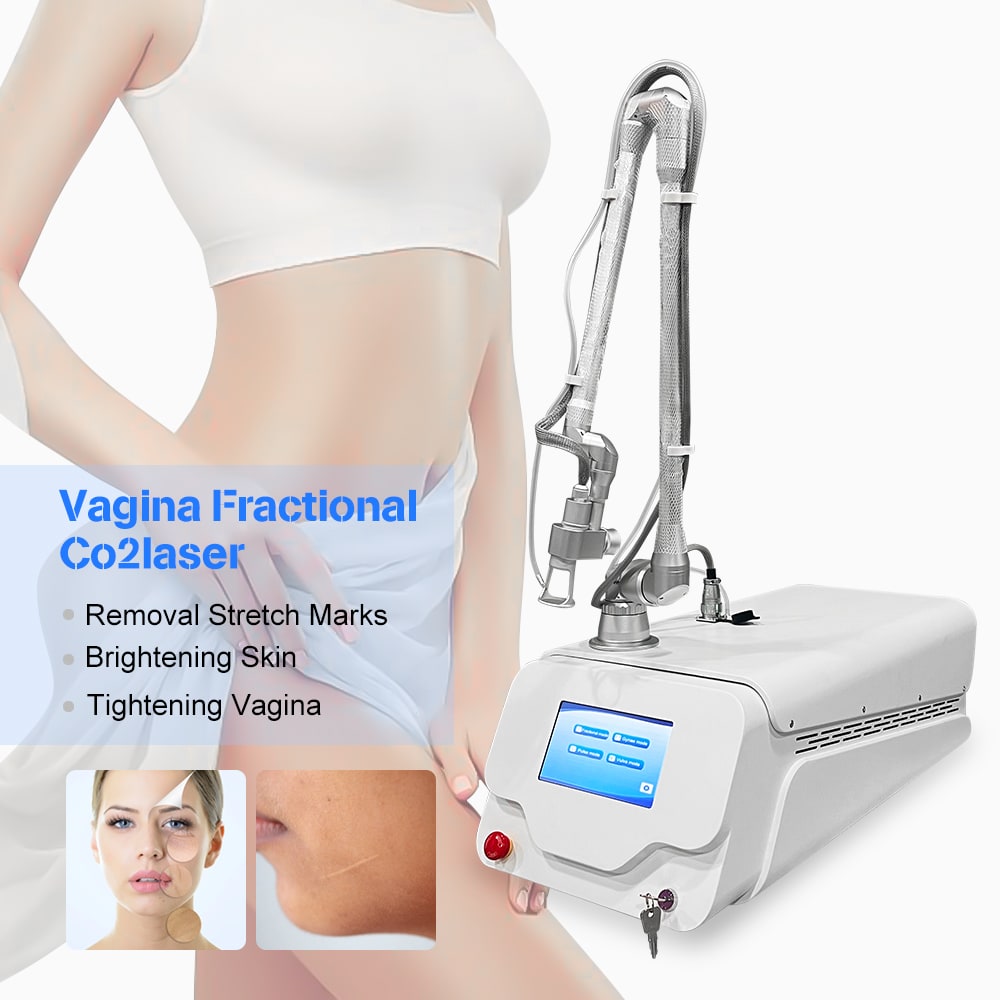

Private Therapy

Thermal radiation make mucosa tissue contraction and collagen fibers thereby improving and restructuring private tightening.

• Shrink private: rapid tightening, constriction, lasting firmness.
• Beautify private: dilute pigment, pink labia.
• Moist private: increase secretion, eliminate dryness.
• Maintenance private: deep rejuvenation, prevent aging.
• To improve sensitivity.
• Private health, balance PH, improve the internal environment.

Specification of Fractional CO2 Laser Machine

• Wavelength: 10600nm
• Laser apparatus: Sealed off laser device simulated by direct current
• Optical beam quality: TEM00
• Output power: 30w
• Spot size: 0.02~0.05mm2
• Aiming beam: Red semiconductor laser (650nm)

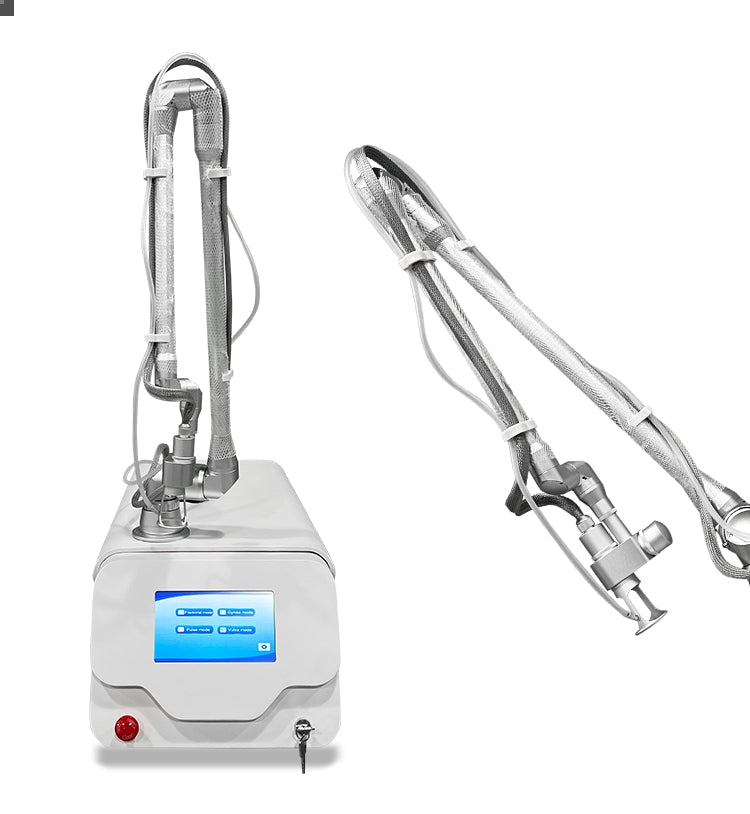

• Beam transport device: Articulated arm with 6-joint and balance weight
• Working mode: Continuous operation
• Output Mode: Continuous, single pulse, interval pulse and super pulse
• Scan scope: Max 20mmx20mm  Min 0.1x0.1
• Scan graphics: Circle, triangle, square, rectangle,hexagon, ellipse, line
• Scanning Mode: Random , Normal and Mid split scan
• Energy: 1- 60W
• Distance: 0.1-2.6mm
• Cooling system: Circulating water cooling
• Weight: 31kg
• Dimension: 93*52*36cm
• Voltage: 100-240V, 50-60HZ

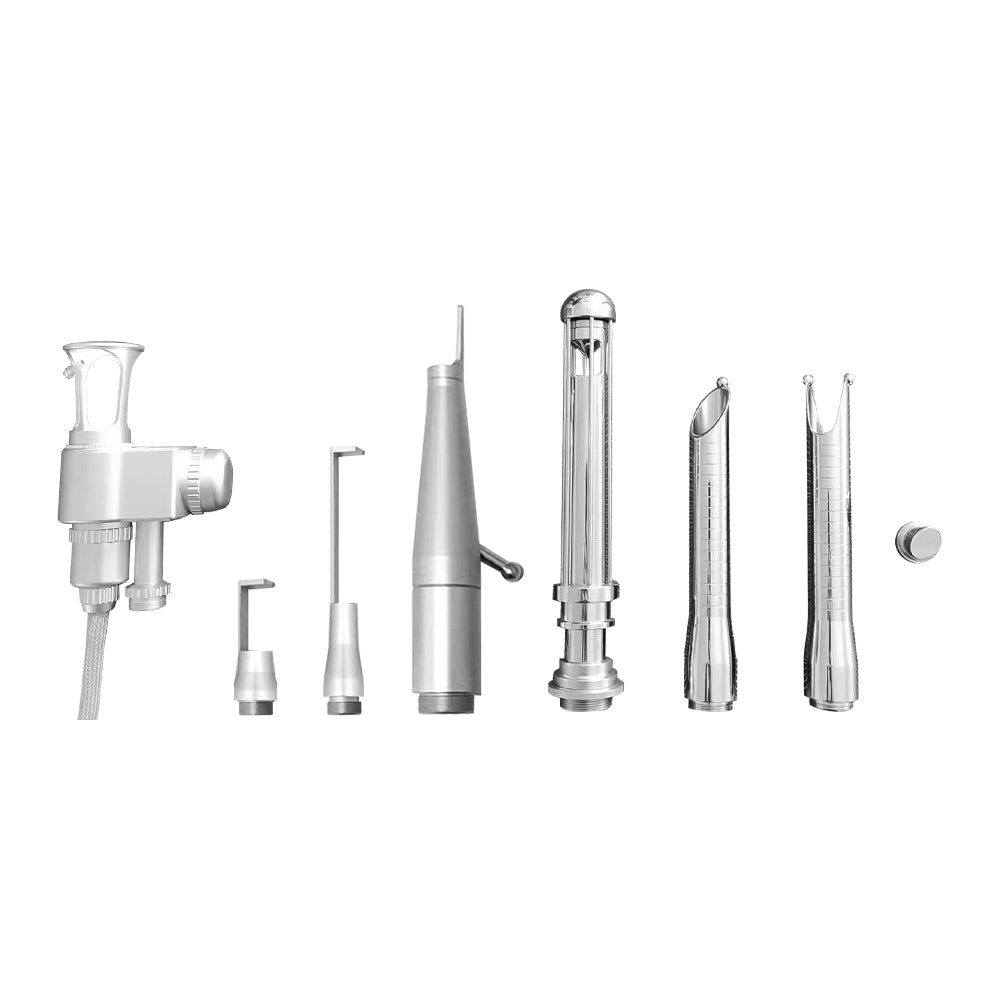

Package List

• Main machine * 1pc
• Guide light arm * 1pc
• Fractional laser head * 1pc
• Private tightening head * 1set
• Pulse head * 1pc
• Foot switch * 1pc
• Key * 2pcs
• Power cord * 1pc
