IPL Hair Removal Device Portable OPT Machine

IPL OPT Hair Removal Machine | E-Light IPL + Bipolar RF

One machine. Six revenue-generating treatments.
This portable IPL OPT (Optimal Pulse Technology) machine combines Intense Pulsed Light (IPL) with Bipolar Radio Frequency (RF) — the E-Light technology — to deliver more effective treatments at lower light energy levels than standard IPL. The result: safer treatments, broader client suitability, and six distinct treatment applications from a single device.

E-Light Technology: Why IPL + RF Is Better Than IPL Alone

Standard IPL relies entirely on light energy absorbed by melanin or hemoglobin. E-Light adds bipolar RF energy that heats the dermis independently of skin color — meaning:

• Lower IPL energy needed for the same result — reduced risk of burns and hyperpigmentation
• Effective on a wider range of skin tones (including tanned skin)
• RF component tightens skin and stimulates collagen simultaneously
• More comfortable treatment experience for clients
• Longer-lasting results due to dual-mechanism action

🎯 6 Treatment Applications

1. Permanent Hair Removal
IPL energy is absorbed by melanin in the hair follicle, converting to heat that reduces the follicle's ability to produce hair. Effective on all body areas including face, underarms, legs, bikini line, arms, chest, and back.

2. Pigmentation & Freckle Removal
Selective photothermolysis targets melanin in freckles, age spots, sunburn, chloasma, and superficial pigmented lesions. The 530nm filter is optimized for pigmentation treatment.

3. Skin Rejuvenation
IPL + RF stimulates collagen production, improves large pores, smooths rough skin texture, and restores skin elasticity.

4. Wrinkle Reduction
RF energy heats the dermis to stimulate collagen remodeling. Reduces fine lines, superficial wrinkles, and improves overall skin firmness.

5. Vascular Treatment
IPL energy is absorbed by oxyhemoglobin in dilated blood vessels. Treats facial redness, spider veins, and skin flushing. The 480nm filter targets vascular lesions.

6. Acne Treatment
Blue-spectrum IPL reduces P. acnes bacteria through photochemical reaction. Reduces active acne and prevents recurrence.

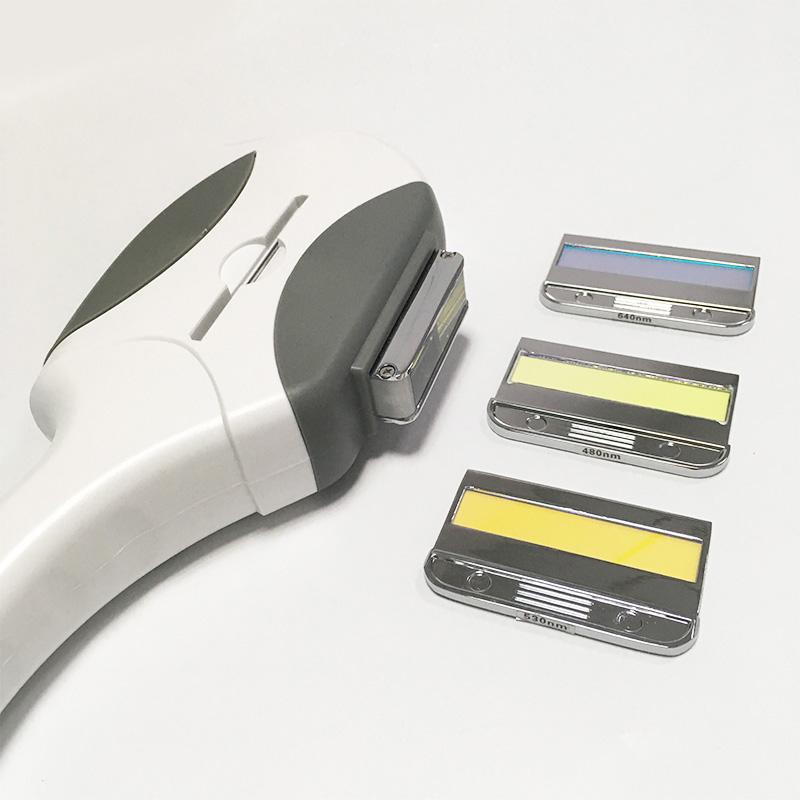

🔬 3 Interchangeable Filters

📊 Technical Specifications

• Technology: IPL OPT + Bipolar RF (E-Light)
• IPL Energy: 1–50 J/cm²
• IPL Frequency: 1–10 Hz
• Spot Size: 15 × 50 mm
• Filters: 480nm / 530nm / 640nm
• Power: 800W
• Display: 8" touch screen
• Cooling: Water cooling + semiconductor cooling
• Voltage: 100–220V, 50/60Hz (universal)
• Weight: 27 kg | SKU: SH01

🗓 Treatment Protocol (Hair Removal)

• Session: 20–60 min depending on area size
• Frequency: Every 4–6 weeks
• Sessions needed: 6–10 sessions for permanent reduction
• Maintenance: 1–2 sessions per year after initial course

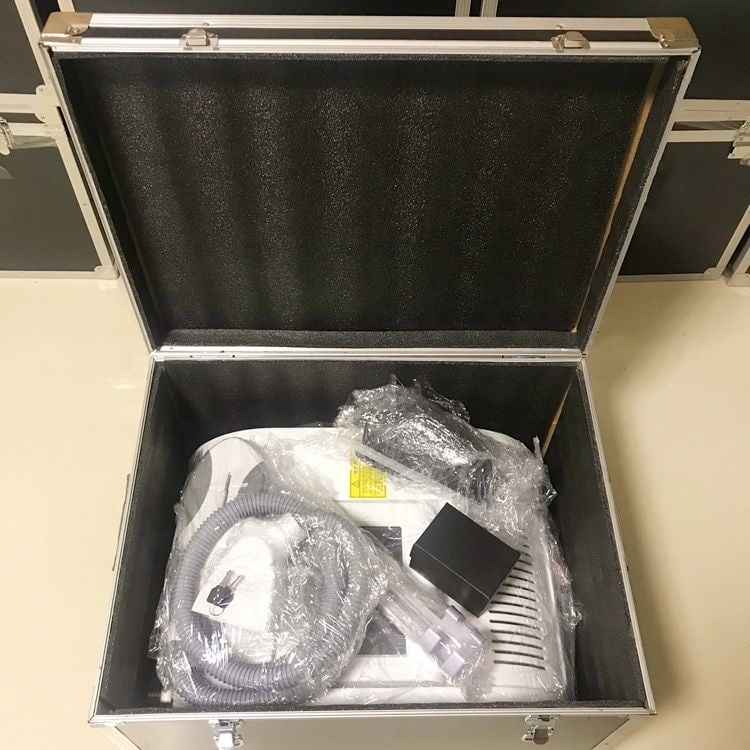

📦 Package Contents

• Main Machine × 1

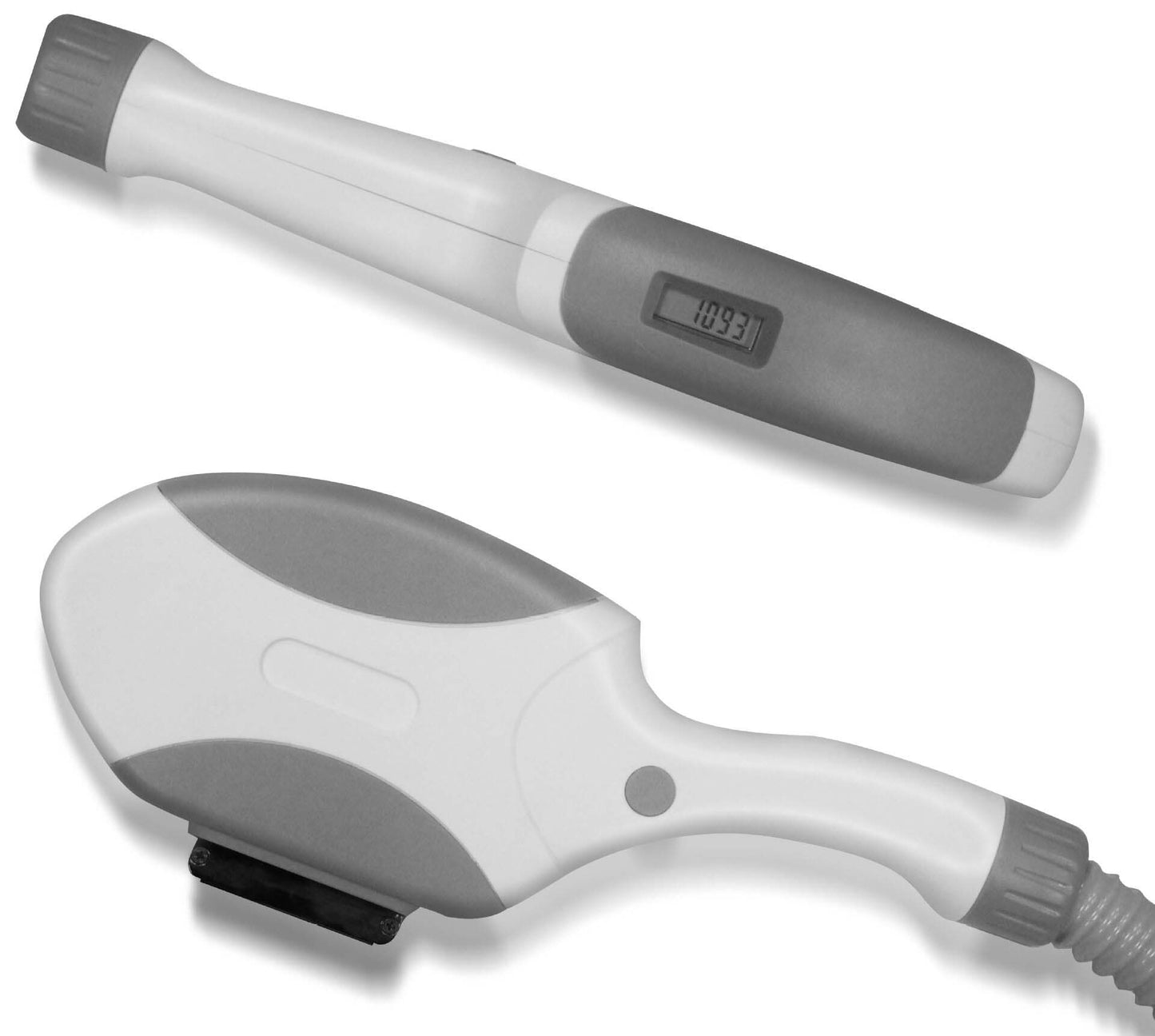

• IPL Handle × 1
• Filters (480nm / 530nm / 640nm) × 1 each
• Protective Glasses × 1 (operator) | Blinder × 1 (client)
• Water-injected Funnel × 1
• Keys × 2 | Power Cord × 1 | User Manual × 1

❓ FAQ

Q: What is OPT and how is it different from standard IPL?
OPT (Optimal Pulse Technology) delivers IPL energy in a square-wave pulse pattern — energy is consistent throughout the entire pulse duration. Standard IPL delivers a spike of energy at the start that drops off rapidly. OPT's consistent energy delivery is safer, more comfortable, and more effective.

Q: Is IPL suitable for dark skin tones?
IPL is most effective on Fitzpatrick I–IV. For very dark skin tones (Fitzpatrick V–VI), the 808nm diode laser is a safer option. Always conduct a patch test before full treatment.

Q: How many sessions are needed for permanent hair removal?
Most clients achieve 80–90% permanent hair reduction after 6–10 sessions spaced 4–6 weeks apart.

Q: Who is not suitable for IPL treatment?
Not recommended for: pregnancy, very dark skin tones without patch test, active skin infections or open wounds, clients on light-sensitizing medications, recent sun exposure or tanning, and clients with a history of raised scarring.

This device is intended for professional aesthetic use. Results may vary. Not intended to diagnose, treat, cure, or prevent any condition.
